Description:

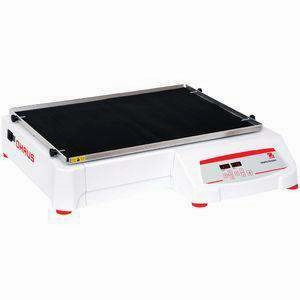

OHAUS Heavy Duty Shakers are designed to handle a wide range of applications no matter how difficult the task. Powerful. convenient shakers provide consistent orbital shaking action. Digital models offer accurate speed control for applications that demand repeatable results. Non-digital models are an economical alternative. Maximize throughput and efficiency in your laboratory - eight models with load capacities ranging from 16 to 68 kg.

Brand:

OHAUS

SKU:

SHHD2325DG

Type:

Heavy Duty Orbital Digital Shakers

Features:

• Orbital motion with a 25 mm diameter
• Capacity of 23 kg
• Speed range from 20 rpm to 500 rpm
• Independent LED displays for speed and time settings
• Detachable 3-wire cord and plug
• RS232 interface for data logging and unit control
• Built-in tray with non-slip rubber mat

Technical Specifications:

• Motion: Orbital. 25 mm
• Capacity: 22.7 kg
• Speed Range: 20 rpm - 500 rpm
• Tray Size: 18 in x 24 in (45.7 cm x 61 cm) (LxW)
• Control: Digital
• Drive System: Triple Eccentric; Brushless DC Motor
• Calibration: Speed calibration
• Communication: RS232 (Included)
• Dimensions: 24 in x 5.9 in x 26.7 in (61 cm x 14.9 cm x 67.8 cm) (LxHxW)
• Net Weight: 108 lb (49 kg)
• Orbit: 1 in (25 mm)
• Power: 120V. 5A. 50/60Hz
• Power Consumption: 75 W
• Safety Certification: TUV
• Speed Accuracy: 1 rpm. Above 100 rpm 1% of set speed
• Timer: 1 second - 160 hours
• Tray Construction: Aluminum
• Working Environment: 14F - 140F. 80%RH. non-condensing (-10C - 60C. 80%RH. non-condensing)
