Description:

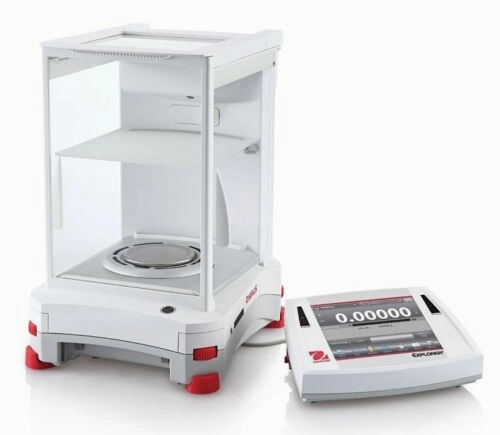

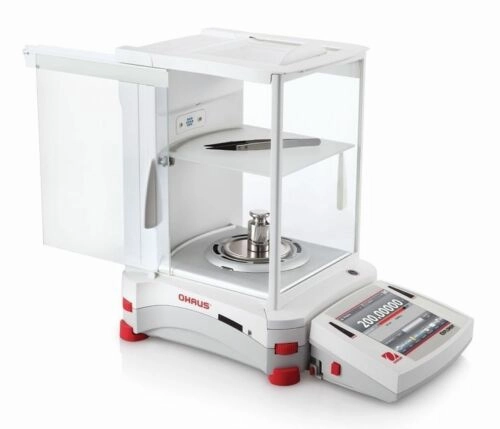

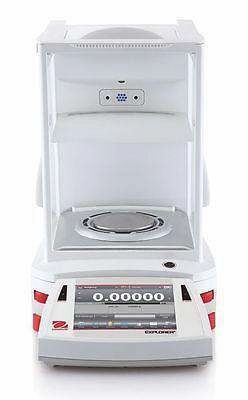

The OHAUS EX225D/AD Explorer Analytical Balance is a high-precision balance designed for laboratory work and research that requires accuracy to the hundred-thousandth. It features a maximum capacity of 120g/220g and a readability of 0.01mg/0.1mg. The balance is equipped with a full-color VGA graphic display with a 4-wire resistive touch screen for easy operation. It offers a wide range of weighing applications. including weighing. percent weighing. parts counting. check weighing. and more. The balance also features AutoCal fully-automatic internal calibration. fast stabilization time. and four touchless sensors for convenient use. It comes with a metal base. ABS top housing. stainless steel pan. and an anti-static glass draftshield with a flip-top door. The balance is powered by an AC adapter and offers easy communication through USB and RS232 ports. It is designed with various features for user convenience. such as a menu lock switch. stability indicator. and auto standby. The OHAUS EX225D/AD Explorer Analytical Balance is a reliable and accurate balance for sophisticated laboratories.

Brand:

OHAUS

SKU:

EX225D/AD

Type:

Analytical Balance

Features:

• Maximum capacity: 120g/220g
• Readability: 0.01mg/0.1mg
• Pan size: 3.14 in (80 mm)
• AutoCal fully-automatic internal calibration
• Fast stabilization time
• Four touchless sensors
• Built-in ionizer with automatic door models
• Up to 14 operating languages
• SAVE to USB function
• Menu lock switch
• Security bracket
• Integral weigh below hook for below balance weighing applications
• Removable stainless steel weighing platform
• Stability indicator
• Overload and underload indicators
• Auto standby

Technical Specifications:

• Maximum capacity: 120g/220g
• Readability: 0.01mg/0.1mg
• Pan size: 3.14 in (80 mm)
• Internal Calibration: AutoCal - Automatic
• Draftshield: Included
• Auto Door: Included
• Auxiliary Display Model: Available as an Accessory
• Battery Life: Not Applicable
• Built-in Ionizer: Yes
• Communication: Ethernet (Available as an Accessory); USB (Included); RS232 (Included); USB Host
• Dimensions: 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
• Display: Full-color 5.7 in VGA. touch screen
• In-Use Cover: Included
• Linearity : 0.1 mg
• Minimum Weight (USP. 0.1%. typical): 20 mg
• Net Weight: 7.5 kg
• Pan Construction: Stainless Steel
• Power: AC Adapter (Included)
• Repeatability. typical: 0.015 mg
• Stabilization Time: 8 s
• Tare Range: To capacity by subtraction
• Units of Measurement: Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom
• Working Environment: 50F 86F. 85%RH. non-condensing (10C 30C. 85%RH. non-condensing)
